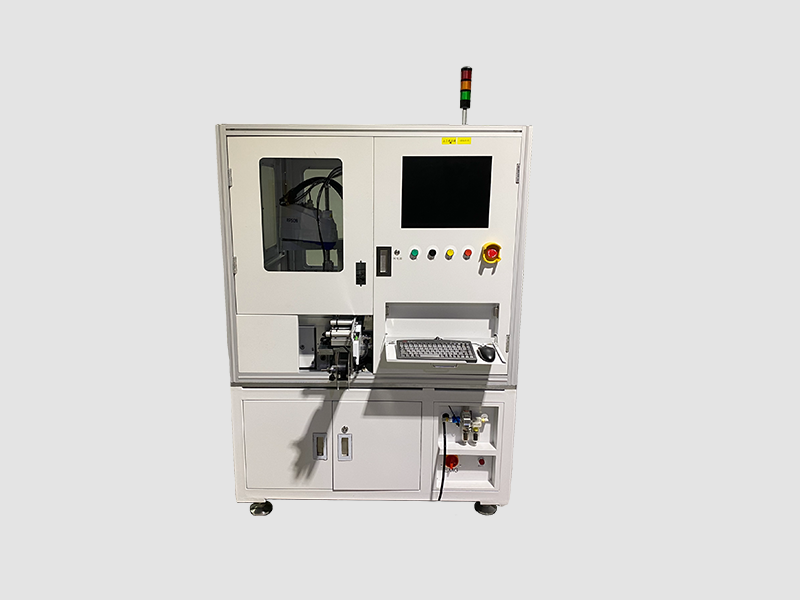

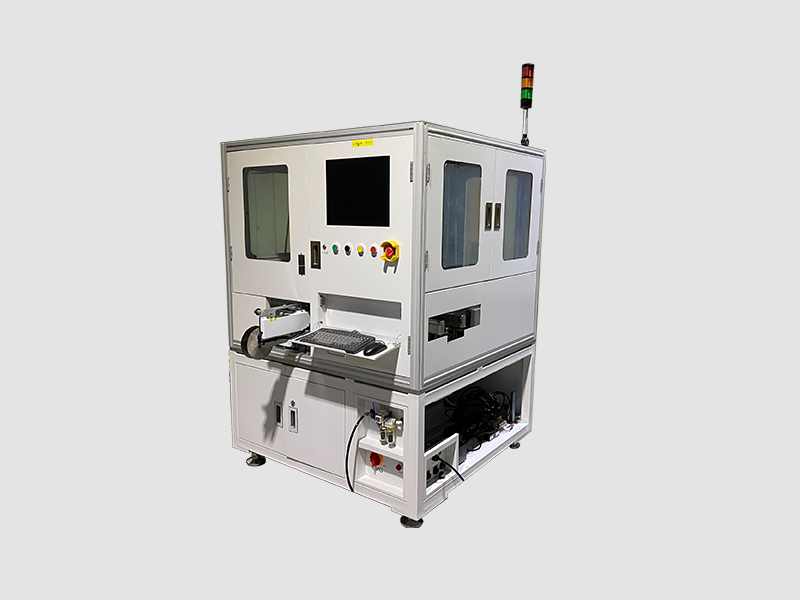

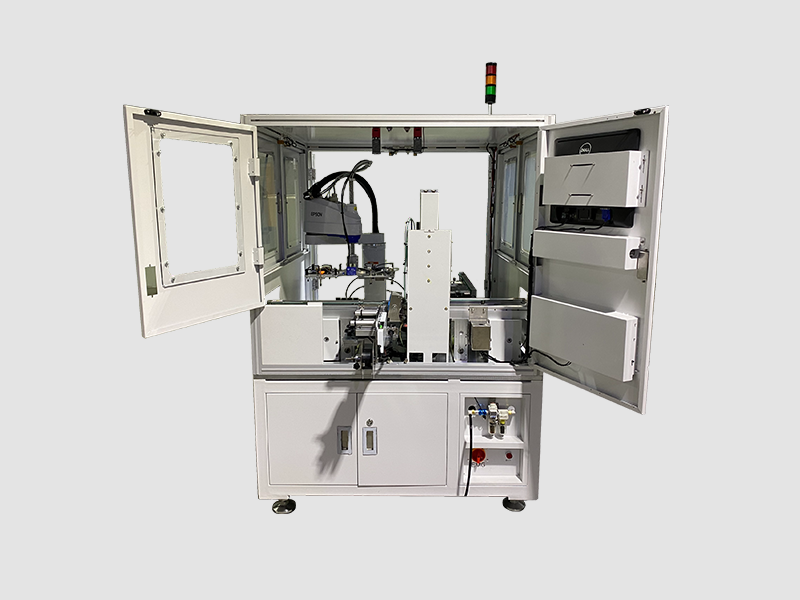

The magazine type loading and unloading machine is used in the semiconductor SMT production line feeding system, which can provide feeding supply for 4 channels at the same time. Multiple magazines can be put in, and the equipment automatically senses to pick up each magazine one by one and feed them at the designated position. The pushing mechanism pushes out each layer of material in the magazine layer by layer, and the transfer mechanism receives the material and moves it to the designated track for feeding. The entire process is automatic and does not require personnel operation.

Application fields:

semiconductor packaging

Features:

Multi track shuttle waiting function

Multi track transportation function

Connection detection function

Push material card detection function

Equipped with automatic loading and unloading function for magazines, and full material alarm prompt

Install ion fan that meets ESD requirements

Technical Indicators:

Can overcome substrate warping within 7mm

Applicable substrate specifications: Length 180-300mm

Width 50-120mm

Thickness 0.2-4mm

Product magazine: Standard magazine

UPH：＞600
