Series models

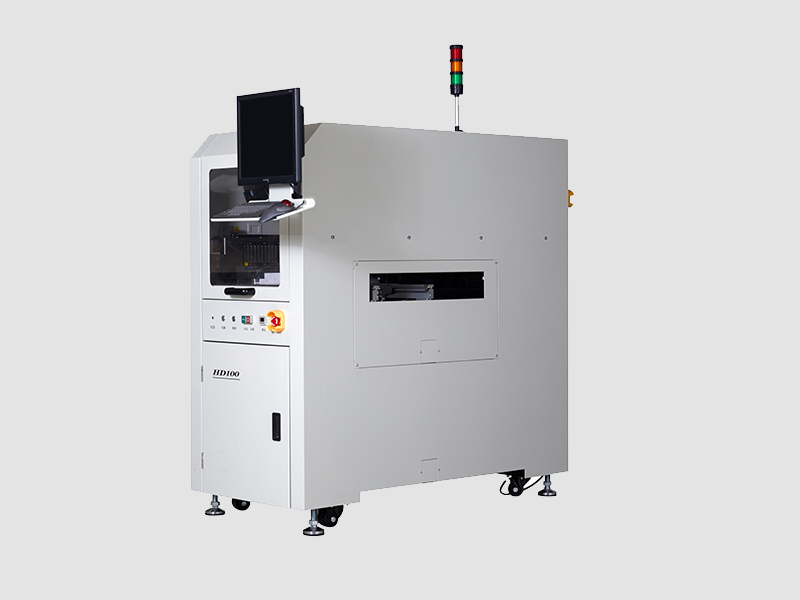

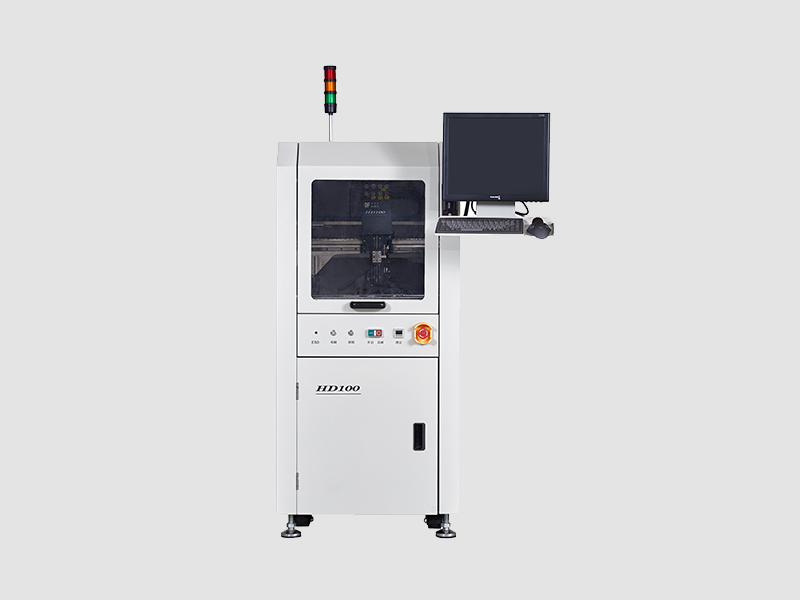

HD100

Features

·Using linear motor drive and grating ruler displacement feedback to achieve high-speed and high positioning accuracy;

·Non contact dispensing, can be matched with pneumatic and piezoelectric injection valves according to customer needs;

·Position correction, Mark point recognition, and needle offset correction;

·Automatic planning of dispensing trajectory and adhesive volume;

·Glue weight automatic correction system;

·Needle nozzle automatic cleaning system;

·Remaining adhesive amount alarm, capable of unmanned operation;

·Prevent false door opening alarm;

·Optional adhesive weight automatic correction system;

·Optional independent glue pressure tank for glue supply;

·Optional dispensing station bottom heating and vacuum adsorption platform;

·Optional single/dual channel and extended channel modules;

·Optional single/double valve configuration.

Application field

Used for adhesive applications such as PCBA, FPC, bonding, and sealing.

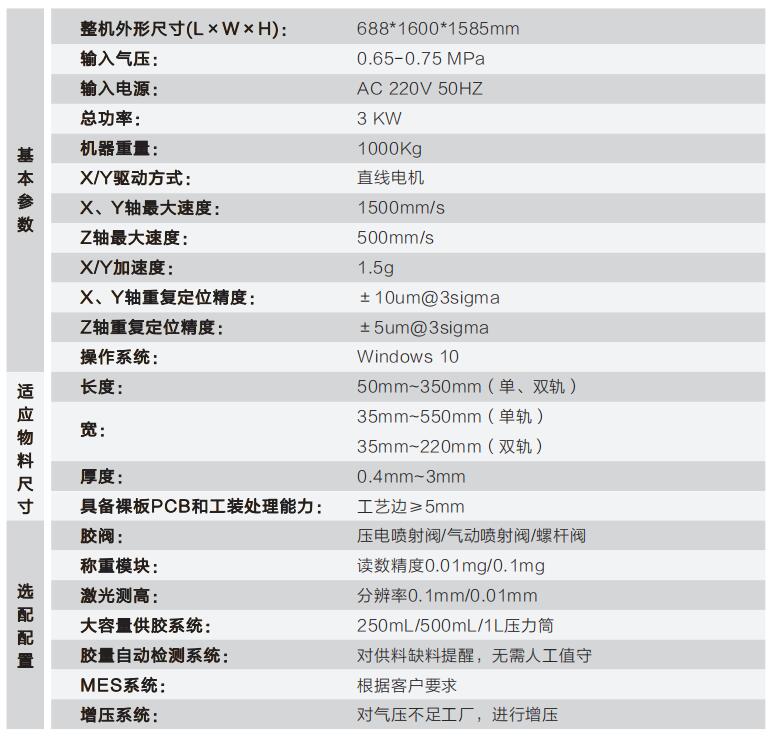

Technical Specifications
