Series models

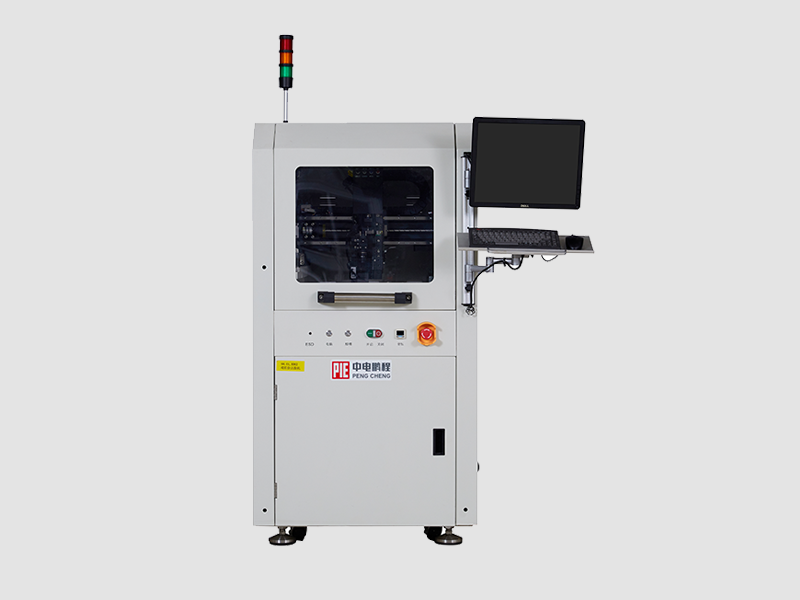

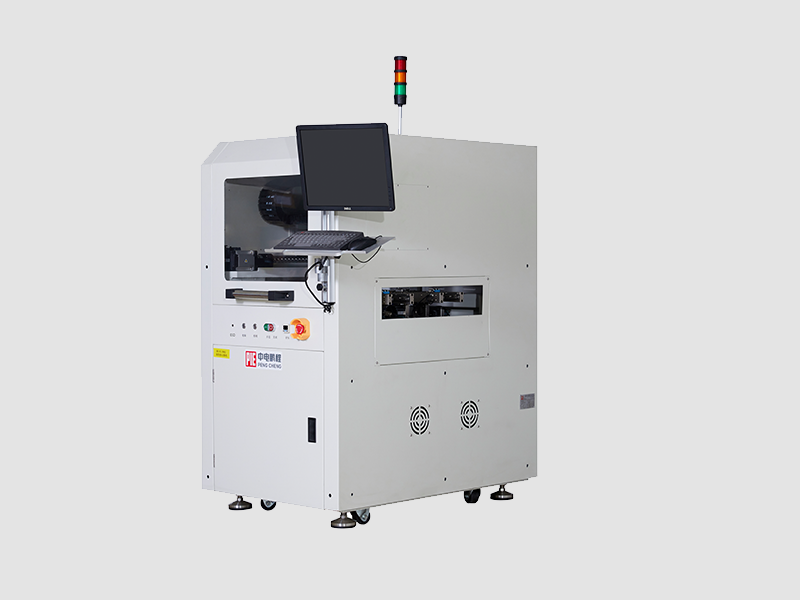

PD100

Features

Adopting an integrated welding frame with stable structure, it is driven by well-known brand servo motors and precision grinding ball screws;

Non contact dispensing, can be matched with pneumatic and piezoelectric injection valves according to customer needs;

Position correction, Mark point recognition, and needle offset correction;

Automatic planning of dispensing trajectory and adhesive volume;

Head rotation and swing angle system;

Adhesive weight automatic correction system;

Needle nozzle automatic cleaning system;

Remaining adhesive amount alarm, capable of unmanned operation;

Optional 2D/3D visual inspection system, capable of detecting adhesive breakage;

Optional adhesive weight automatic correction system;

Optional independent glue pressure tank for glue supply;

Optional dispensing station bottom heating and vacuum adsorption platform;

Optional single/dual channel and extended channel modules;

Optional single/double valves.

Application field

Bottom filling, encapsulation, SMT red glue, dam enclosure and other adhesive applications.

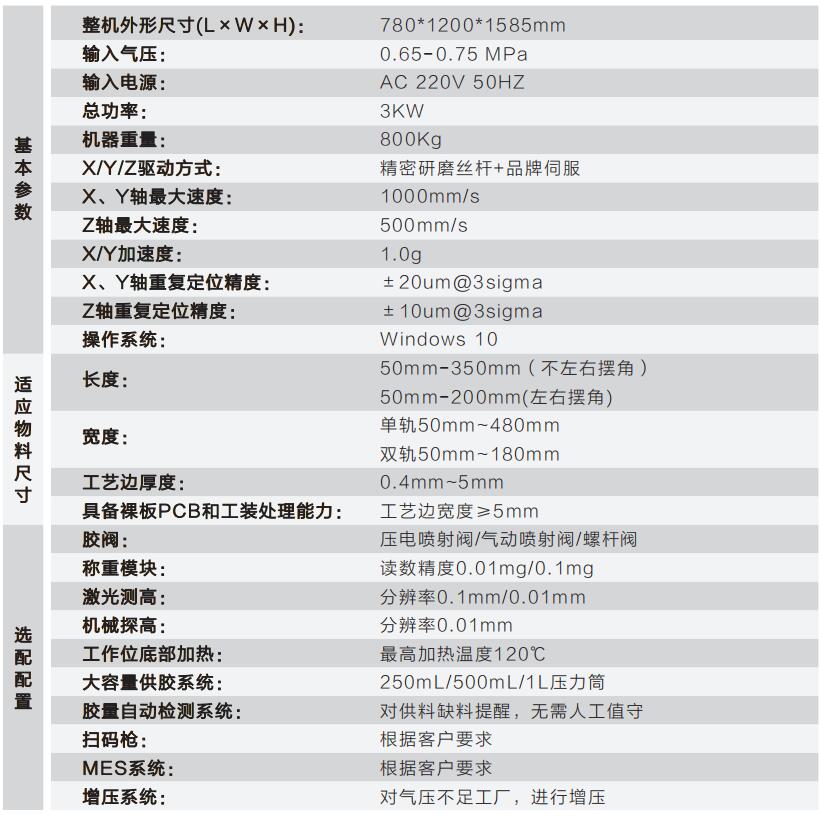

Technical Specifications
