Series models

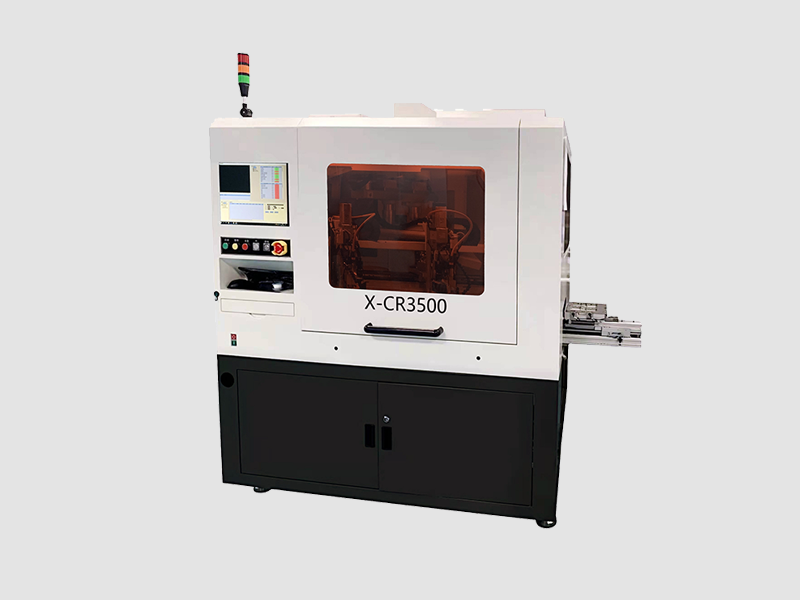

X-CR3500-RS

X-CR3800- ZP

Features

Support online operations, including feeding, cutting, and discharging waste materials to achieve fully automated production, making operation and maintenance more convenient and greatly reducing turnover and labor costs;

Supports multi head operations, significantly improving production efficiency compared to single head operations;

Supports loading and unloading with robotic arms, allowing for arbitrary adjustment of posture;

Support offline programming;

Supports automatic disc placement and PCBA size detection function, which greatly improves cutting accuracy and ensures more stable line operation while achieving SMT post production flow;

Supports up and down dust collection, with efficient dust collection capabilities and outstanding dust collection effects, effectively solving dust pollution problems;

Supports high-precision cutting of linear modules;

Configurable intelligent 8-axis suction cup, supporting flexible wire changing of suction cup.

Optional features

□ Single spindle cutting

□ Dual spindle cutting

□ Automatic tool changing side 2 tool magazine

□ Automatic tool changer, middle 8 tool magazine

□ Discharge mode - belt discharge

□ Discharge mode - module discharge

□ Double inlet plate cutting at the feeding port

□ Automatic cover cutting

□ Cut without cover plate

□ Upper dust collection cutting

Automatic barcode scanning at the feeding port (supporting cameras and barcode guns)

Tool size detection function

□ Automatic tool width adjustment

Offline programming

□ 8-axis intelligent suction cup

Pcba size detection function

Pcba size correction system

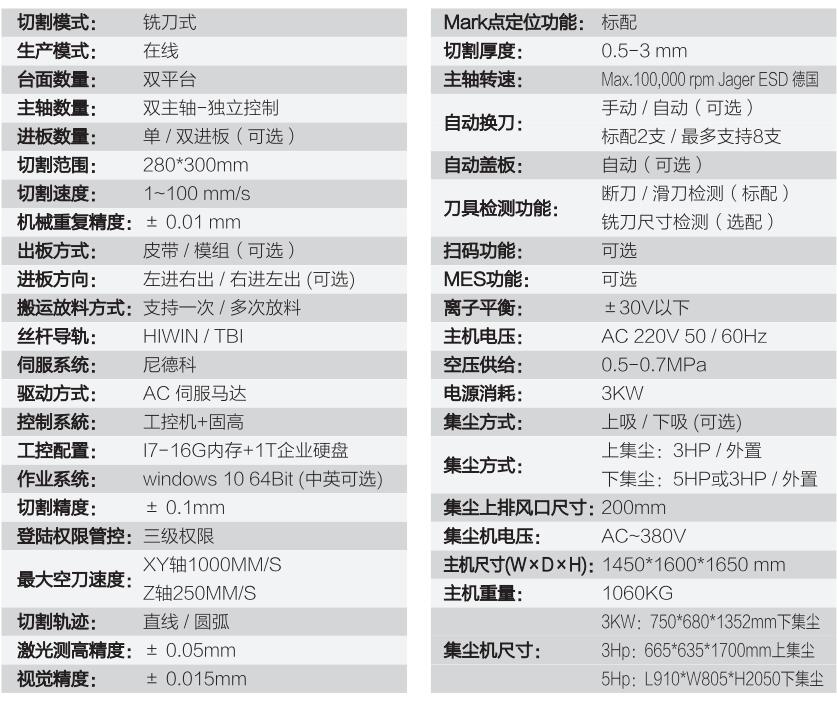

Technical Specifications
