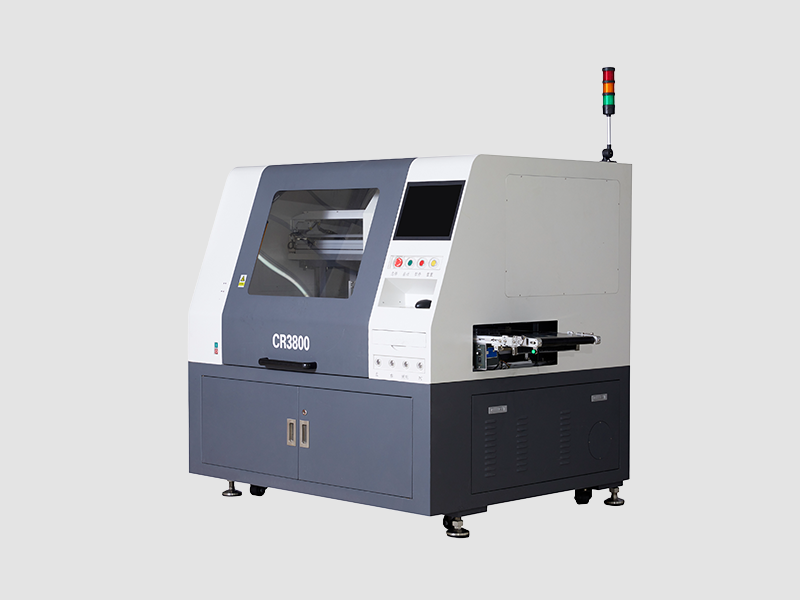

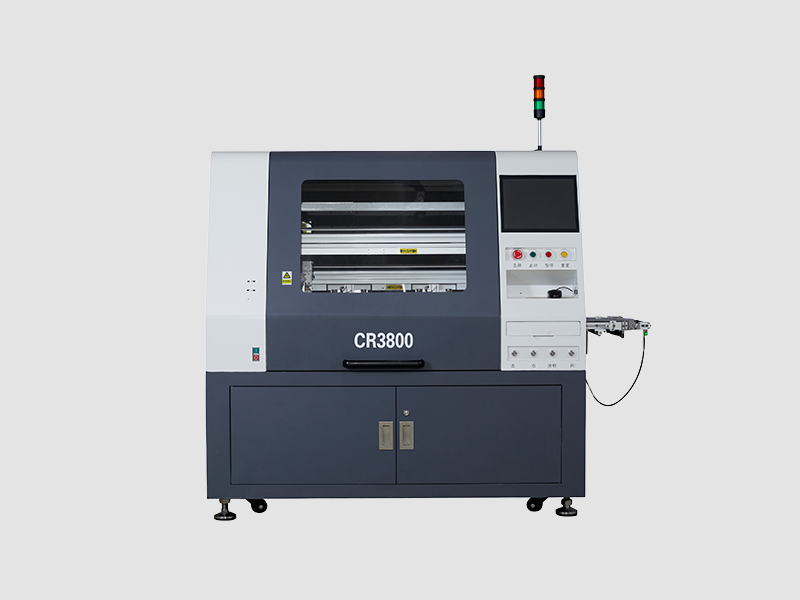

Series models

CR3800-G

CR3800-GX

CR3800-D-GX

CR3800-DG2A-JC

Features

Support online homework, including feeding, cutting, and removing waste materials to discharge,

Realize fully automated production, make operation and maintenance more convenient, greatly reduce turnover and labor costs;

Supports multi head operations, significantly improving production efficiency compared to single head operations;

Supports online/offline modes, strong universality, and fast delivery time (with regular inventory equipment);

Supports automatic disc placement and PCBA size detection function, which greatly improves cutting accuracy and ensures more stable line operation while achieving SMT post production flow;

Supports up and down dust collection, with efficient dust collection capabilities and outstanding dust collection effects, effectively solving dust pollution problems;

Supports multifunctional options.

Optional features

□ Single spindle cutting

□ Dual spindle cutting

□ Automatic tool changing side 2 tool magazine

□ Automatic tool changer, middle 8 tool magazine

□ Discharge mode - belt discharge

□ Discharge mode - module discharge

□ Single feed plate cutting at the feeding port

□ Double inlet plate cutting at the feeding port

□ Automatic cover cutting

□ Cut without cover plate

□ Upper dust collection cutting

Automatic barcode scanning at the feeding port (supporting cameras and barcode guns)

Tool size detection function

□ Automatic tool width adjustment

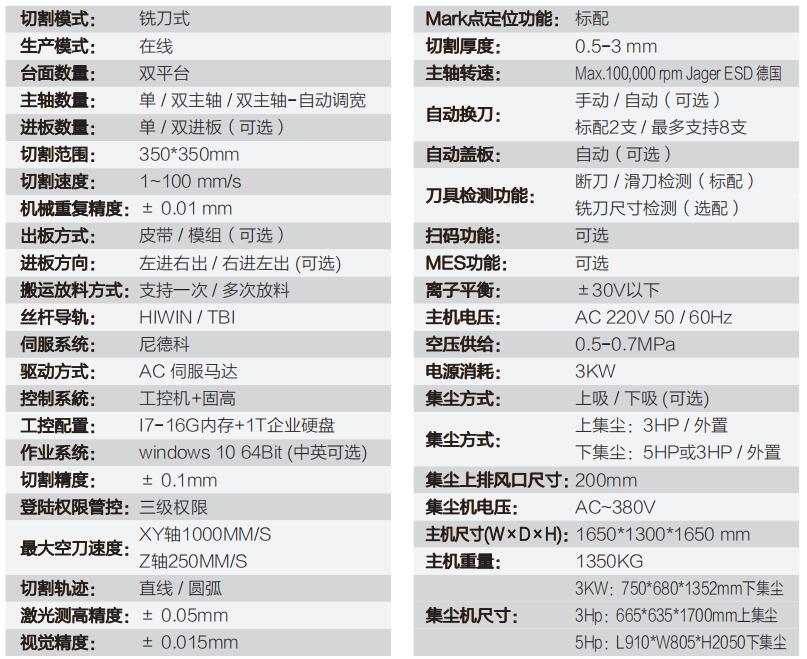

Technical Specifications
